Description

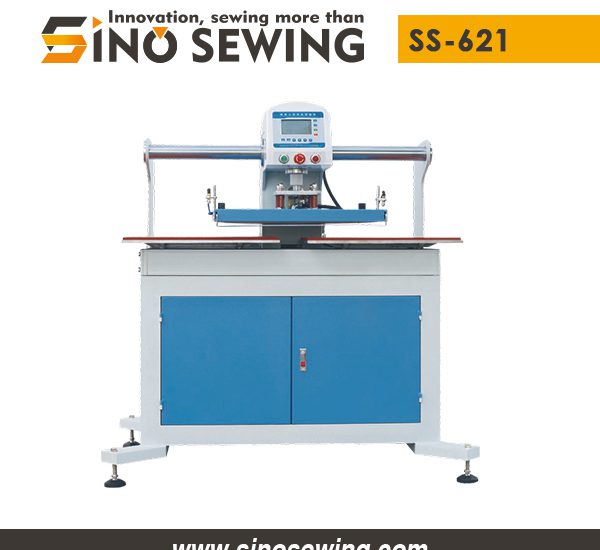

Features of Model: SS-621
1) Drive by electric, no need air or oil pump, just connect the power supply.
2) Adopts advanced technology of servo motor, shuttle and position quickly and accurately. It is increased 25% efflciency compare with traditional semi-automatic heat press machine.

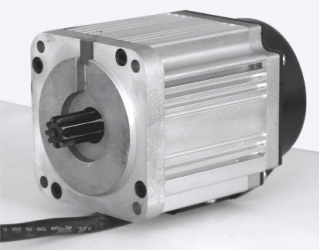

3) Drive by servo motor, which saves 70% power compare with normal motor.
4) Mist spray function is optional.
 |
 |
 |
 |
| Improving 25% of work efficiency | Saving 70% Power | Servo Motor, Power Efficient | Multi-function Control Console |
|---|
Technical Data Sheet of Model: SS-621
| Model | Plate Spec. (mm) | Power (w) | Voltage (v) | Frequency (Hz) | Temperature (℃) | Pressure (kg) | Time (s) | G.W. (N.W.) (kg) | Size (cm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| without Mist Spray | with Mist Spray | |||||||||
| SS-621 | 400*600 | 2800 | 3500 | 220 | 50~60 | 0~399 | 1000 | 0~999 | 280 | 145*90*140 |
| 600*800 | 6000 | 7500 | 380 | 190*110*145 | ||||||
| 800*1000 | 12000 | 450 | 235*130*150 | |||||||
